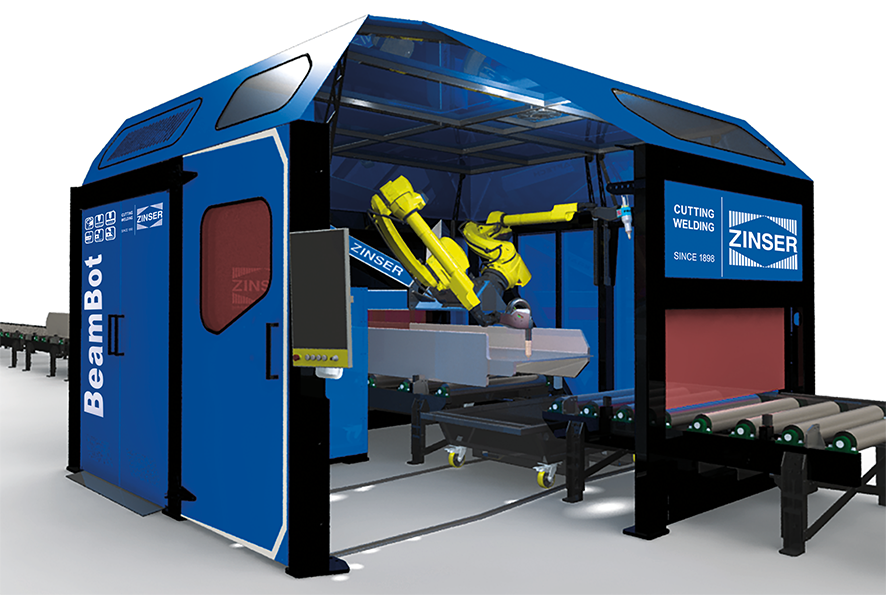

BeamBot

Plasma/Laser Notching Robot for Automated Beam and Profile Processing

The future of flexible beam and profile processing

The first cutting cell of its kind.

Laser and plasma cutting technologies in one cell.

Flexibly adaptable.

Fully integrated robotic system.

Faster, smarter, and more precise – engineered to meet the highest demands in steel construction, plant engineering, and metal processing.

The ZINSER BeamBot ensures maximum cutting precision with minimal post-processing. State-of-the-art technology and intelligent automation deliver outstanding cut quality and significantly boost production efficiency.

Thanks to precise control and optimized process workflows, components are cut cleanly and accurately – resulting in a substantial increase in production capacity. The combination of laser and plasma cutting technology provides maximum flexibility and reliability for consistent results in steel processing.

Your options with the ZINSER BeamBot

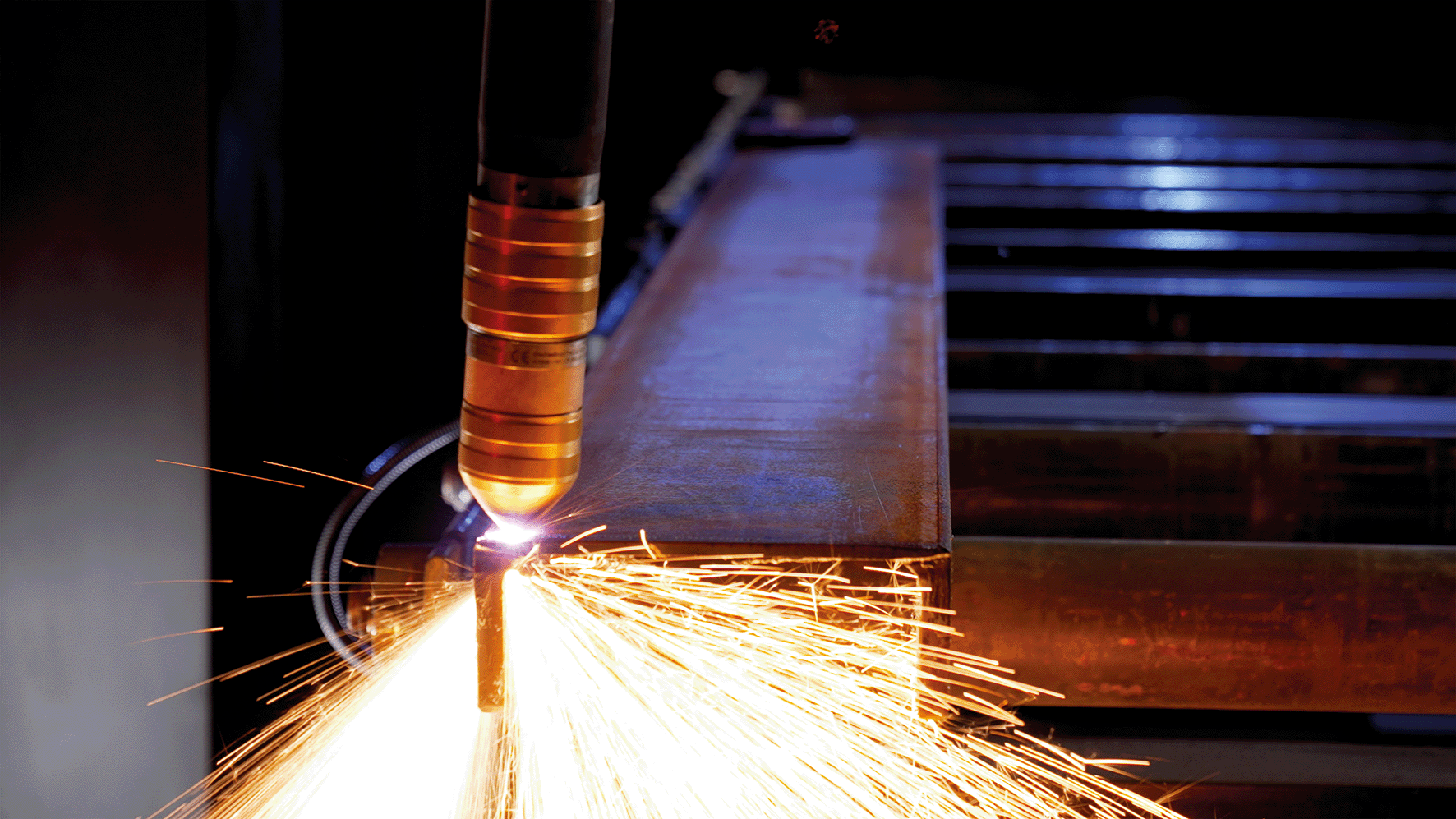

plasma cutting
Metal cutting technologies: marking

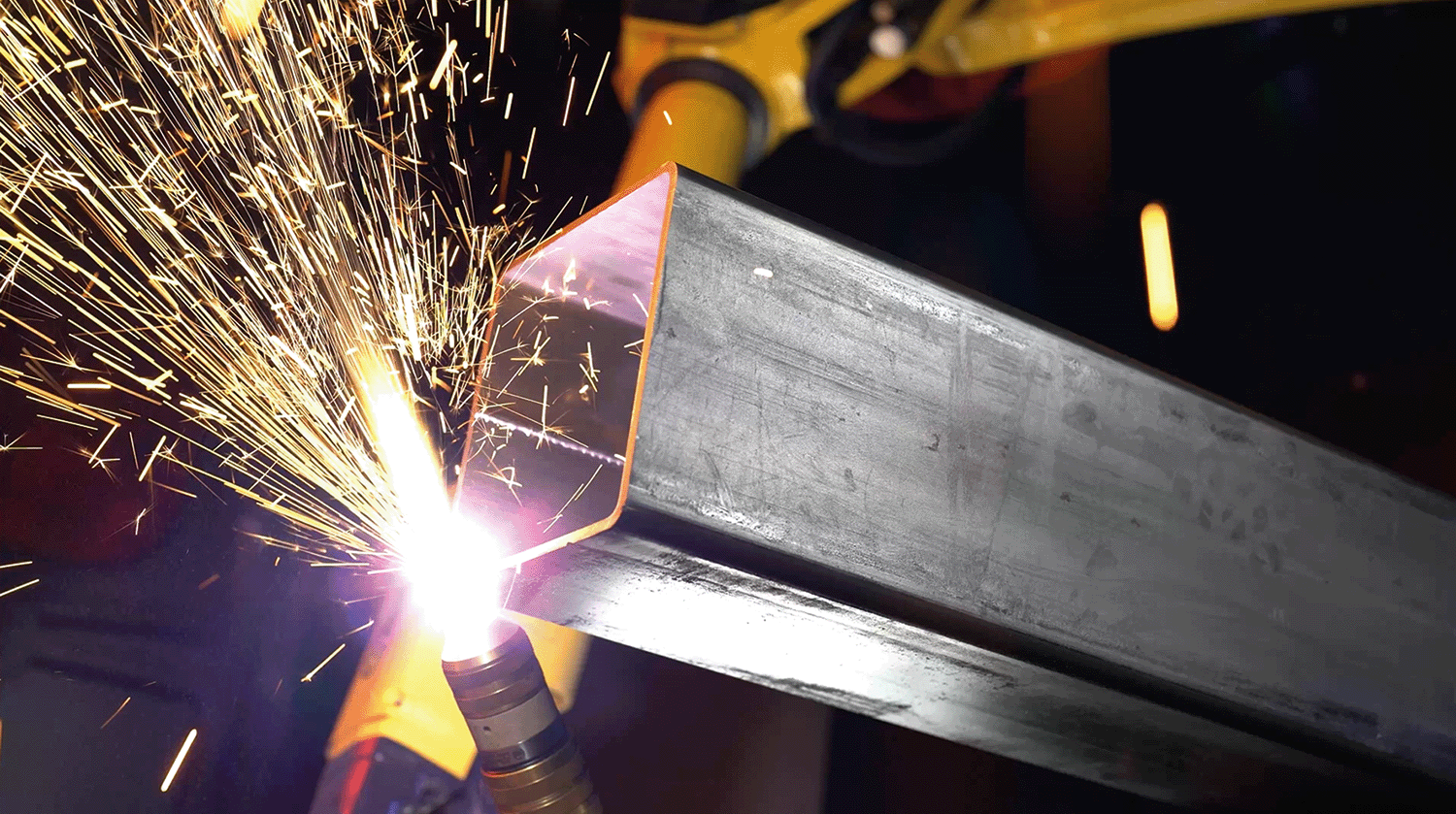

Metal cutting technologies: pipe cutting 2D
Metal cutting technologies: Pipe cutting 3D

Your benefits with the ZINSER BeamBot

Get your individual machine offer!

Tell us your requirements, and together we will find the perfect solution.

Specifications

Technical data

  • Beam width: 100 – 1200 mm (custom widths available on request)
  • RHS/SHS (Rectangular/Square Hollow Sections): 50 x 50 mm up to 400 x 400 mm
  • Channel width (C- and U-channels): 75 – 380 mm
  • Angle (L-profiles): 25 x 25 mm up to 20 x 200 mm
  • Maximum weight: 455 kg/m

Photos & videos

Downloads

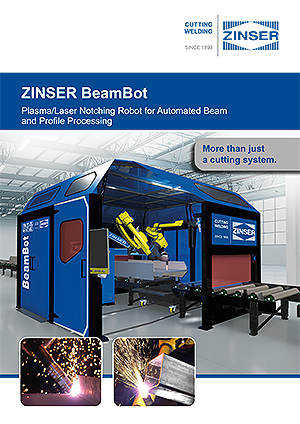

ZINSER BeamBot brochure
